How the FIA ​​needs to deal with ‘spoofing’.

(Motorsport-Total.com) – Formula 1’s change to ground-powered vehicles in an try to carry races nearer collectively for the 2022 season has had an surprising and main facet impact: so-called porpoising.

Formula 1 vehicles will go up a bit in 2023

scaling

Download

All the groups – some extra, some much less – struggled with it, however complaints from drivers about “leaping” when it comes to security lastly prompted the FIA ​​to take motion.

In a controversial transfer, the FIA ​​will introduce the Aerodynamic Vibration Metric (AOM) from this 12 months’s Belgian Grand Prix, which is designed to restrict the quantity of vertical motion of vehicles on the observe.

But that is solely a brief measure. Changes to technical rules are deliberate for 2023, which the international group believes ought to cut back the threat of pig farming remaining such an enormous drawback in the future.

The proposed adjustments had been mentioned at a gathering of Formula 1’s Technical Advisory Committee (TAC) final week and can now go to the FIA’s World Motorsport Council for approval.

The proposals made at the TAC assembly aimed to restrict the design freedom of vehicles by elevating them farther from the floor.

This consists of elevating the diffusers by an as-yet unspecified quantity, whereas the underbody edges are additionally raised by 25 millimeters.

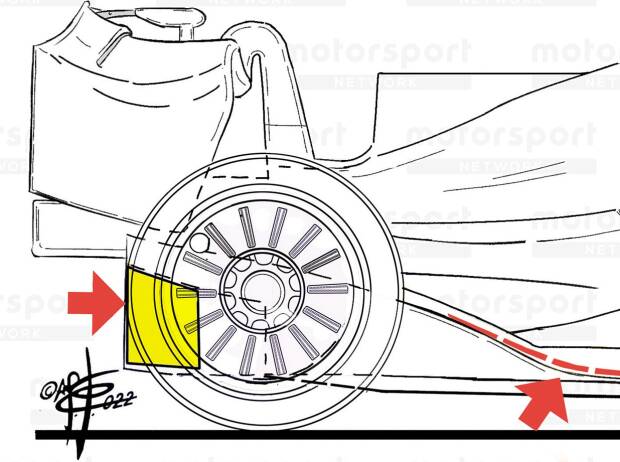

New Formula 1 rules for 2023

The FIA ​​is enhancing the diffuser for the upcoming season

scaling

Download

More stringent ground lateral deflection checks can even be launched to guarantee groups don’t overbend the backside edges to overcome these new restrictions.

The FIA ​​additionally plans to monitor extra intently by introducing a extra correct sensor to assist measure the automobile’s aerodynamic vibrations.

To additional cut back the aerodynamic issues created by the new rules, the groups proposed utilizing two struts inside the diffuser.

Such a simplified resolution is predicted to assist management the movement on this space and fight the unfavourable results of hog and bounce, which will definitely be welcomed by drivers.

The proposed adjustments are in some ways related to these launched in 2021, when it was determined to trim the bodywork, brake wings and diffuser to cut back aerodynamic potential at the rear of the vehicles.

This was primarily to defend the groups from themselves, as a result of in any other case they might construct vehicles that put an excessive amount of stress on the tires, which might lead to even larger issues.

Similar to the 2021 adjustments, the new tweaks cut back the load on the chassis and with it the risk of pitting and leaping.
discount.

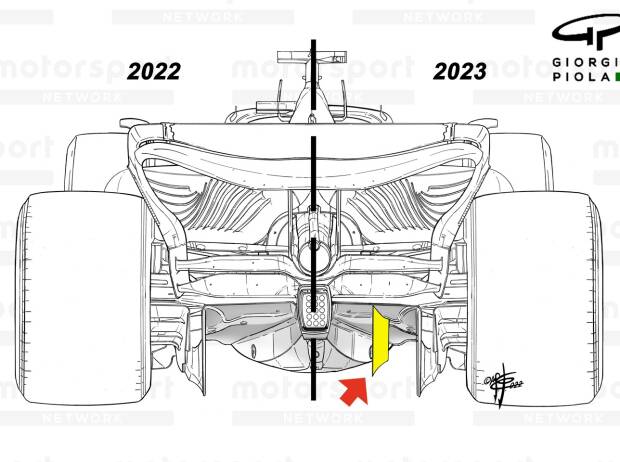

New Formula 1 rules for 2023

The adjustments are designed to cut back the pig

scaling

Download

However, groups are in search of methods to preserve the automobile as low and stiff as attainable with out breaking the new AOM. Because even when efficiency impacts the journey high quality of the automobile, it would nonetheless be discovered.

The proposed rule change is comparable to the adjustments for 2021 and is certain to put a variety of stress on groups as work on subsequent 12 months’s vehicles has already began for a while.

For this purpose, the FIA ​​defined that the proposed adjustments ought to be ratified by the World Motorsport Council as quickly as attainable.

Changes to these extremely delicate areas of the automobile won’t solely undo a few of the work groups have already accomplished on the automobile subsequent 12 months.

They can even eradicate a few of the improvement work in the direction of the finish of this season, as the efficiency decided by the groups will not be related given the upcoming adjustments.

As the porpoise was not proven in the simulations earlier than this season, it’s fairly attainable that by 2023 some groups will take benefit and check out to carry check items to the races in the direction of the finish of the season.

This could assist them perceive the impression of recent rules at an early stage. Just like they did at the finish of the 2020 season.

.
